BALL MILL
1. Working principle:
The ball millhas a rotating cylinder, and the cylinder contains a lot of grinding balls (generally about 50% of the total volume of the cylinder). When the ball mill starts to rotate the cylinder at a certain speed, the grinding ball sticks to the inner wall of the ball mill cylinder due to the centrifugal force and rotates with the cylinder, and is brought to a certain height and then falls freely. When falling, the grinding ball crushes the material in the cylinder.Also, the grinding action between the grinding ball and the inner wall, and the collision among the grinding balls finally crush materials inside the ball mill.
2.Type:
It is divided into vertical ball mill and horizontal ball mill.
1) Vertical ball mills are mainly used for grinding liquid materials.
2) Horizontal ball mills can be used to grind liquid or dry powder materials. So, it can be divided into horizontal dry powder ball mill and horizontal liquid ball mill.
3. Application:
It is divided into vertical ball mill and horizontal ball mill.
1) Vertical ball mills are mainly used for grinding liquid materials.
2) Horizontal ball mills can be used to grind liquid or dry powder materials. So, it can be divided into horizontal dry powder ball mill and horizontal liquid ball mill.

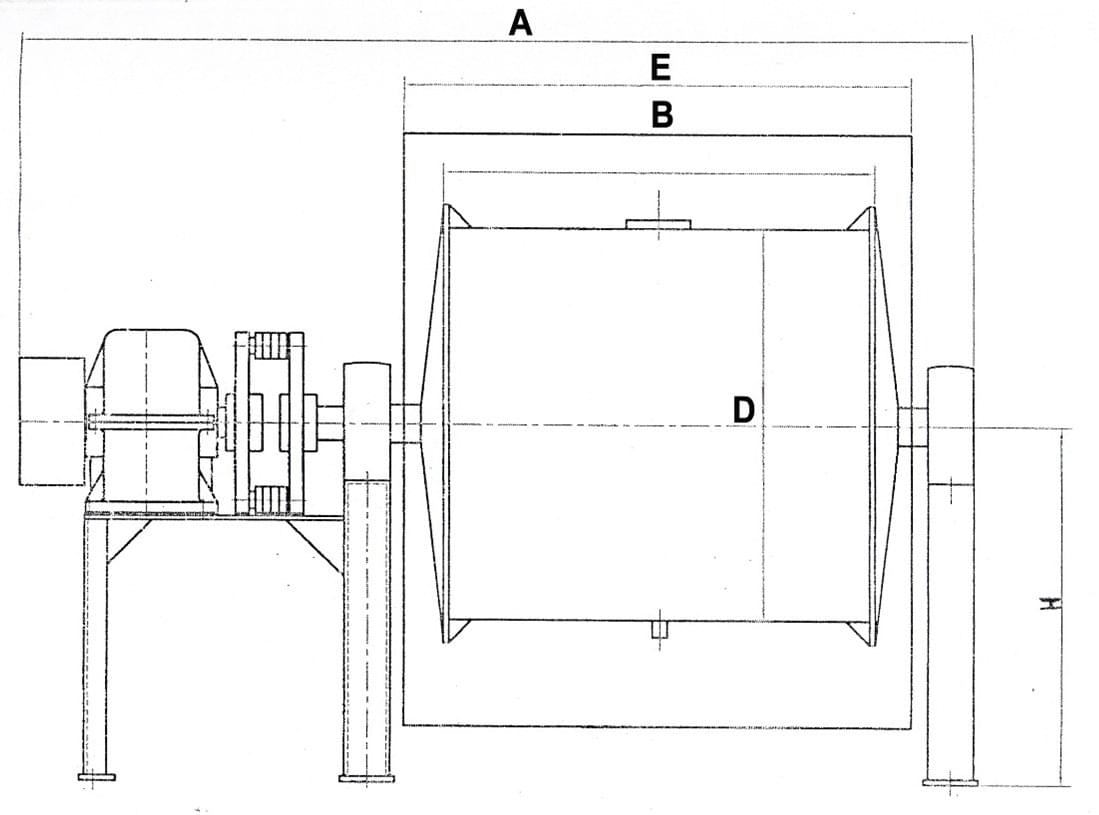

4. Design drawing
-Horizontal ball mill

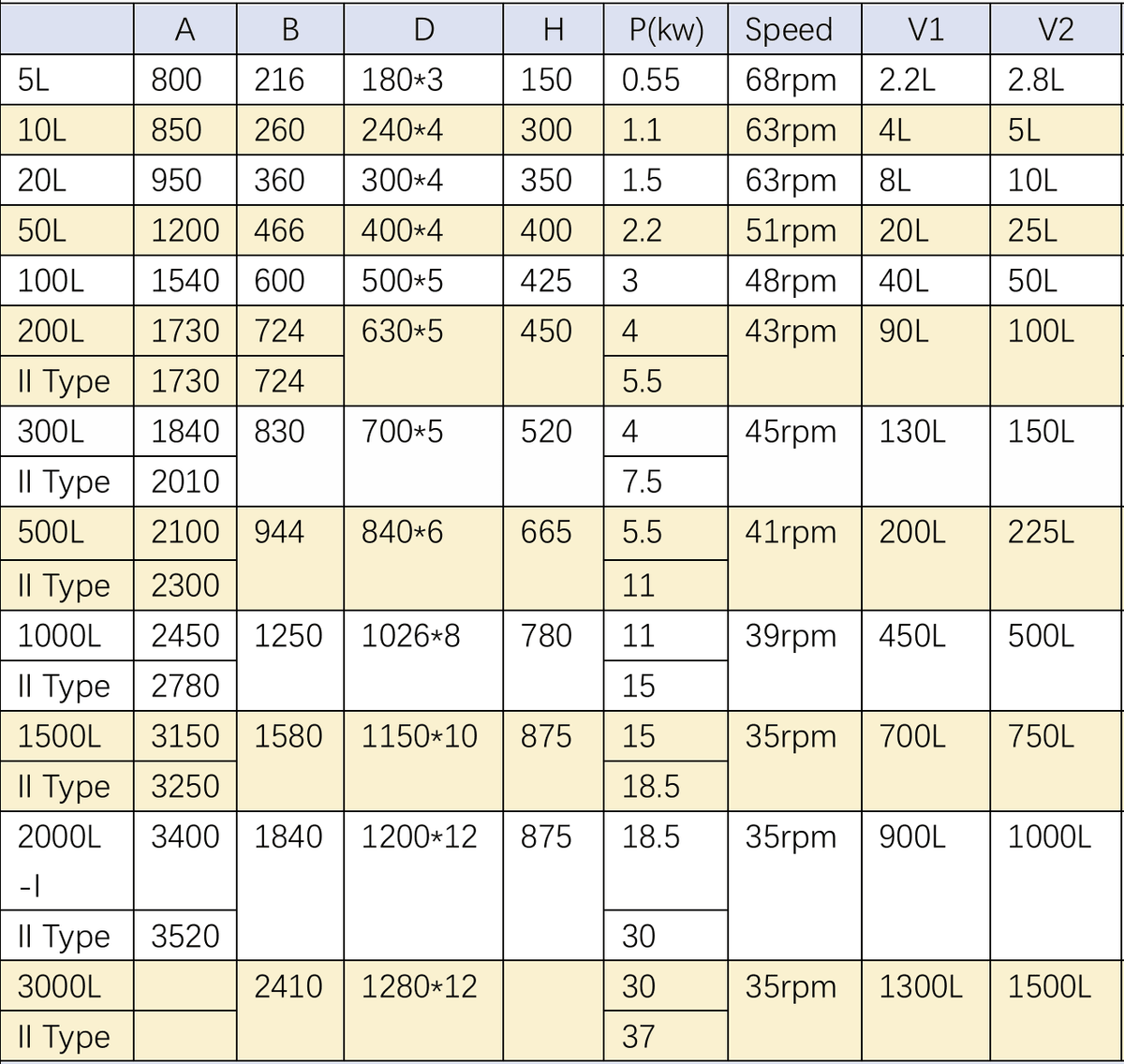

5. Technical data for reference
-Horizontal ball mill
