grease grinding mill

It is used for simple type grease grinding.
Contact us
More Details

  1. Working principles:

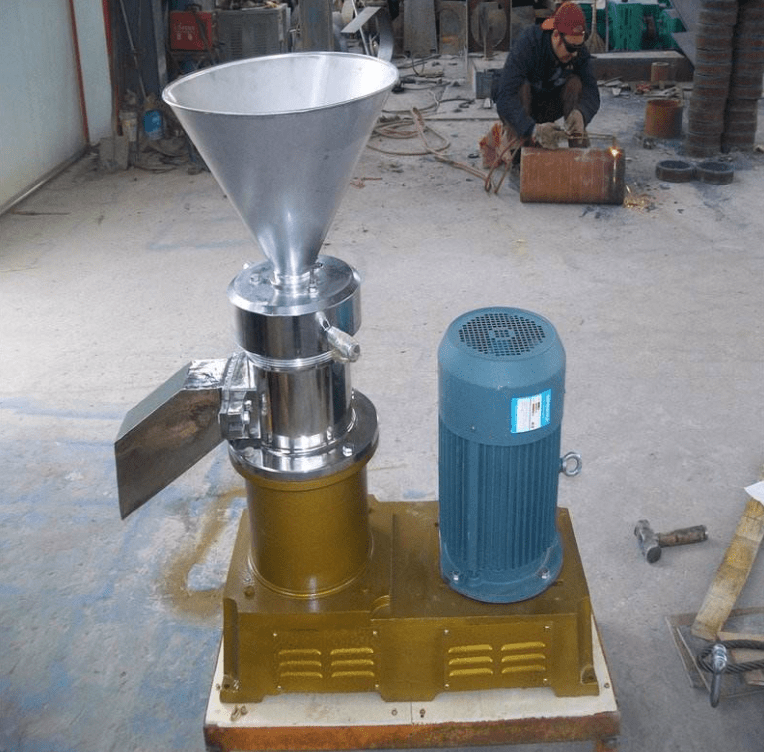

   The colloidal Mill is the equipment for grinding both fluid and semi-fluid materials. According to the requirements for materials to be processed,through the high-speed relative motion of the stator and the rotor, materials are subjected from the complex effects of the strong shear force,friction and high-frequency vibration. This machine can be used for ultrafine grinding,dispersion,emulsification,homogenization, mixing and so on.



    2. Uses:

    (1) The food industry: dairy products, chocolate, bean sauce, jam, peanut butter, cream drinks, etc.;
    (2) Chemical Industry: pigments, lubricating oil, spices, dyes, emulsified asphalt, emulsified rubber, catalysts, paints, etc.;
    (3)pharmaceutical industry: cod liver oil, royal jelly, pollen, etc.;
    (4) Daily Chemical Industry: shoe polish, toothpaste, cosmetics, balsam, soap, detergent, etc.;
    (5) Other industries: construction industry, paper industry, plastics industry, the battery industry.


    3.Special Performances: ( Select from different kinds of colloid mills according to the materials. )
    (1)If the colloid mill is used to produce emulsified asphalt or high-viscosity materials, you can increase the electrical power appropriately.
    (2)If the colloid mill is used to produce inflammable and explosive materials or solvent materials, the motor must be explosion-proof one.
    (3)If the colloid mill is used to produce materials with low fluidness or high viscosity,you may choose the large discharge port.




    4. Category:
    Depending on the material, the colloid mills can be divided into stainless steel one and carbon steel one. In accordance with the form, the machines can be divided into vertical one ,horizontal one and large discharge mouth one. According to the type of the motor, there are general motor one and explosion-proof motor one.



    5. Main technical parameters:



Type

JM50

JM-85

JM-130

JM-180

JM-240

Processing Fineness

2-50

Motor Power(Kw)

1.1

5.5    7.5

7.5    11

18.5    22

37

Production(t/h)

(gravity flow)

Experimental

0.2-2

0.2-4

0.4-8

1.0-10

No-load Speed(r/min)

2880+- 100

3000+- 100

Dimension(cm)

Length



100

115

157

168

Width



43

48

55

61

Height



99

116

152

170

Weight(Kg)



300

420

750

920

Notes

with cooling system
